Description

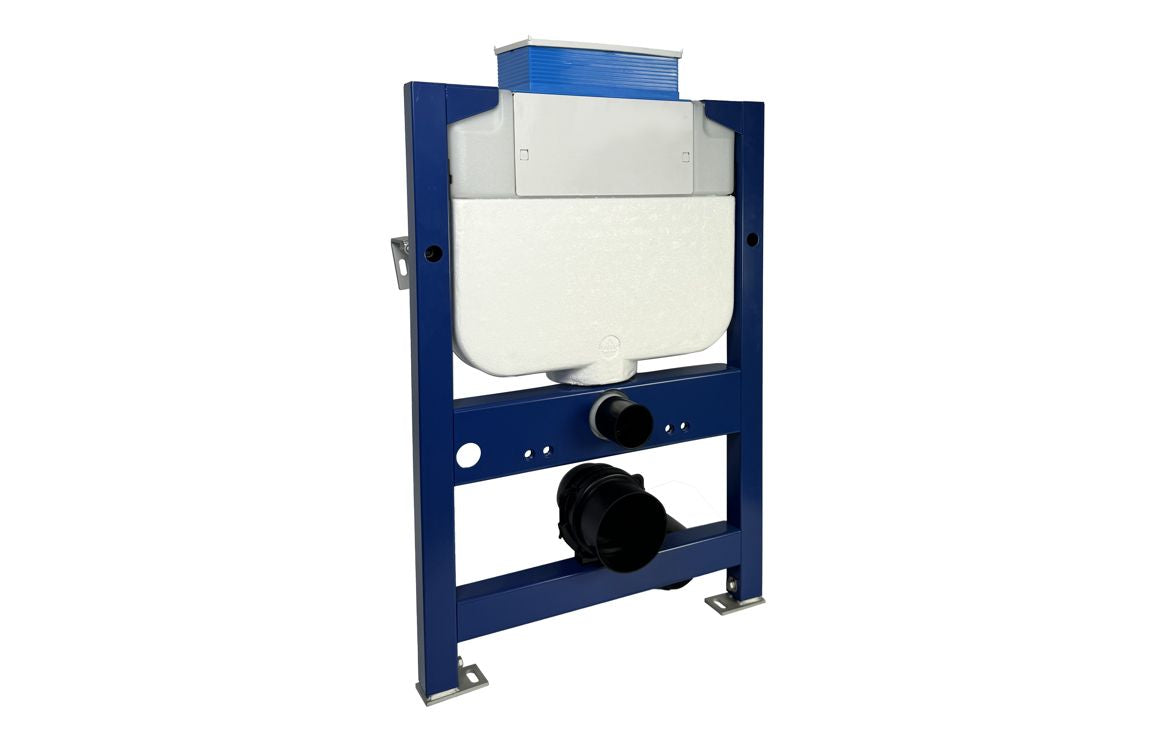

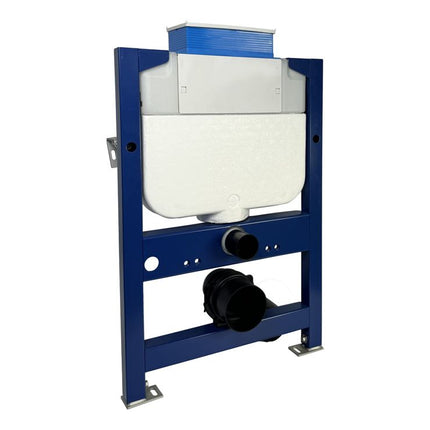

A robust low-height wall-hung WC frame with integrated slim dual-flush cistern, designed for installations where ceiling height or structural constraints require a lower frame profile. WRAS-approved fittings and a 3-year guarantee make this a reliable choice for both domestic and light commercial projects.
Note: A flush plate is required and sold separately. This frame is compatible with all of our round and rectangle flush plates — see the Compatible Flush Plates section below.
Key Features
-
Low-height frame — ideal where standard-height frames won't fit (low ceilings, sloped roofs, restricted height)
-
Height adjustable 740–920mm — accommodates different pan heights
-
Integrated slim dual-flush cistern — 6/4L for water efficiency
-
Top and front accessible — easy servicing without removing the pan
- Suitable for all wall-hung WC pans
- Not compatible with WC furniture units
- WRAS approved fittings
- 3-year manufacturer's guarantee

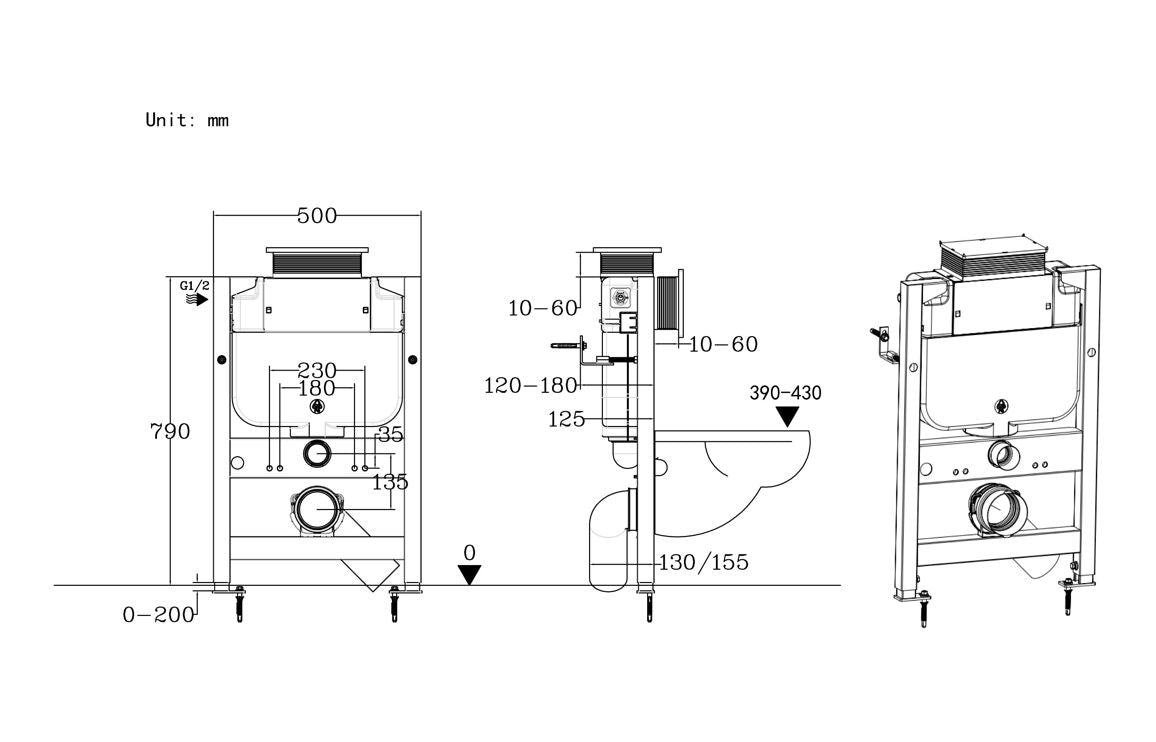

Technical Specification
-
Brand: Aqua Elegance
-
Frame Height: 790mm
-
Frame Width: 500mm
-
Frame Depth: 120–180mm
-
Height Adjustment Range: 740–920mm
-
Flush Volume: 6/4L dual flush
-
Cistern Access: Top and front
-
Approvals: WRAS approved
-
Packaged Weight: 14.15kg
-
Country of Origin: China
-
SKU: DIAC0288
-
Barcode (EAN): 5054913515224
-
Guarantee: 3 Years
Compatible Flush Plates
This frame requires a flush plate, sold separately. It is compatible with all of our round and rectangle flush plates:
Also Available — Cistern & Frame Options
Complete the Installation
Frequently Asked Questions
Does this frame come with a flush plate?
No — a flush plate is required but sold separately. This frame is compatible with all of our round and rectangle flush plates, each available in Chrome, White, Black, Brushed Brass, and Brushed Bronze.
Is this frame compatible with WC furniture units?
No — this frame is designed to be fixed directly into a supporting wall and is not compatible with WC furniture units.
What is the difference between this and the standard height frame?
This low-height frame adjusts between 740–920mm and is ideal for installations with low ceilings, sloped roofs, or restricted height. The standard height frame adjusts between 1080–1380mm and suits most typical bathroom installations.
Can I order if the item shows as out of stock?
Yes — this product can be ordered even when showing as out of stock and we'll fulfil your order as soon as stock is available. Contact us at customerservice@bubblegumbathrooms.co.uk if you need a specific timeframe.
Is delivery free?
Yes — free UK delivery is included on all Aqua Elegance WC frames.
