Description

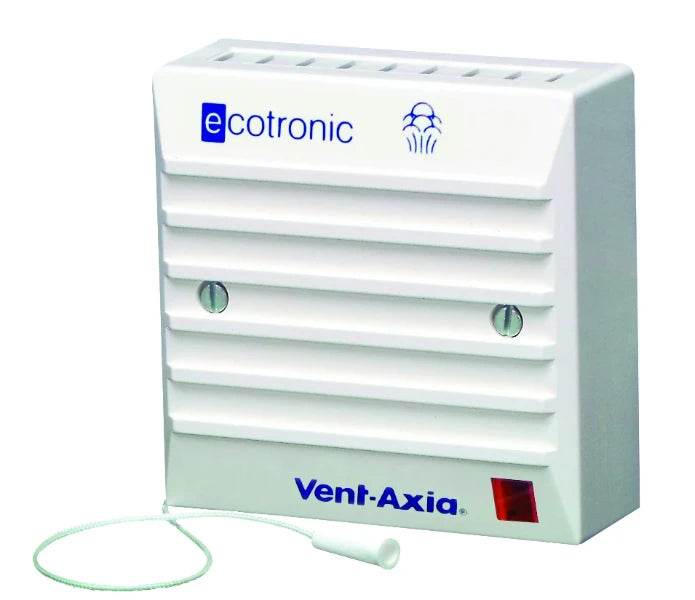

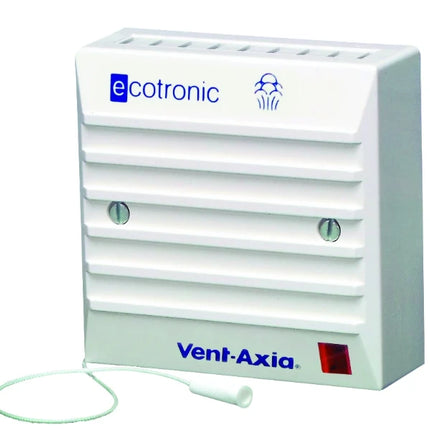

Take the guesswork out of bathroom and wet room ventilation with the Vent-Axia Ecotronic Humidity Sensor. This solid-state On/Off controller automatically triggers your ventilation fan when relative humidity rises above your chosen set point — then switches it off once conditions return to normal. With a built-in pull-cord manual override and low/high speed selection, it delivers intelligent, responsive moisture control in commercial and residential settings alike.
Key Features
- Adjustable humidity set point: 65% to 90% relative humidity (RH)
- Solid-state On/Off sensor — reliable, no moving parts
- Pull-cord manual override with indicator lamp
- Changeover switch to select low or high speed fan operation
- Can be wired into controller ‘Auto’ mode connections
- Maximum switching load: 1 Amp inductive
- Compact wall-mount design: 87 × 87 × 33mm
- Compatible with Vent-Axia ventilation systems and controllers
- Suitable for commercial and residential ventilation applications
Technical Specification
-
Brand: Vent-Axia
-
Model: Ecotronic Humidity Sensor
-
SKU / Part Number: 563532A
-
Sensor Type: Solid state On/Off
-
Humidity Set Point Range: 65% – 90% RH (adjustable)
-
Manual Override: Pull-cord with indicator lamp
-
Speed Selection: Low / High changeover switch
-
Max Switching Load: 1 Amp inductive
-
Ambient Operating Temperature: 0°C to +40°C
-
Dimensions (H × W × D): 87 × 87 × 33mm
-
Barcode: 5015135364144
Frequently Asked Questions
How does the humidity sensor work?
The sensor continuously monitors relative humidity. When levels rise above your chosen set point (adjustable between 65% and 90% RH), the sensor switches your ventilation fan on. Once humidity drops back below the set point, the fan switches off automatically.
Can I override the sensor manually?
Yes — a pull-cord manual override is built in, with an indicator lamp to show when manual mode is active. A changeover switch also lets you select between low and high speed fan operation.
What ventilation systems is this compatible with?
The Ecotronic Humidity Sensor is designed for use with Vent-Axia ventilation systems and controllers, and can be wired into controller ‘Auto’ mode connections. For compatibility with specific models, contact us before ordering.
Is this suitable for domestic use?
Yes — while designed for commercial applications, it is equally suitable for domestic bathrooms, wet rooms, and other moisture-prone spaces.
Is delivery free?
Yes — free UK delivery is included.
Need help or have a compatibility question?
Contact us at customerservice@bubblegumbathrooms.co.uk or call 01603 381095.
