Description

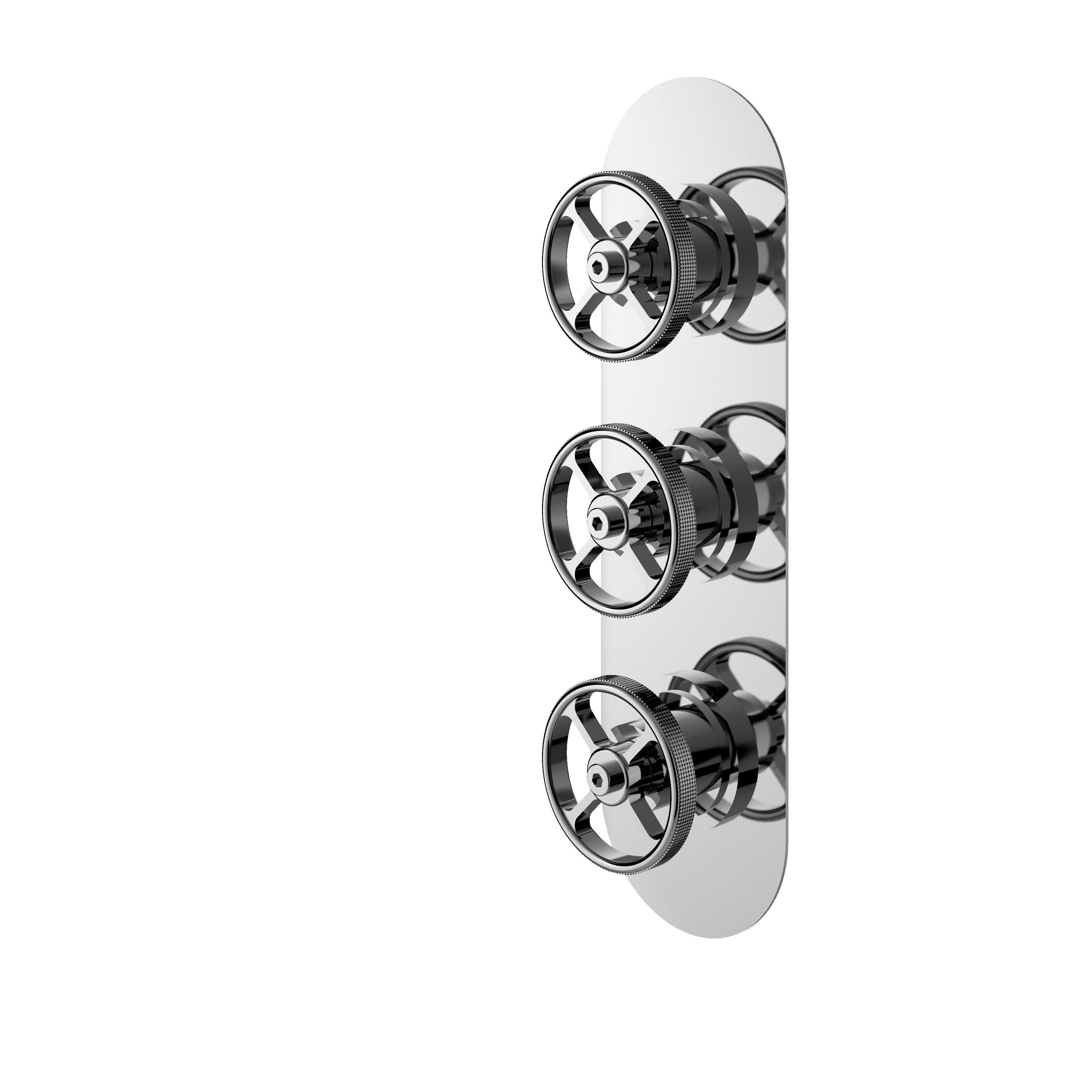

Bring classic character to your shower with the Nuie Revolution chrome concealed triple shower valve with diverter. Traditional round handles and a bright chrome finish create a coordinated focal point, while the concealed installation keeps the plumbing behind the wall for a neat finish. Three outlets give you flexibility when planning your shower arrangement, with the shower head and handset chosen separately.
Key Features
-
Traditional Revolution styling: round handles and a chrome finish for a classic bathroom scheme.
-
Three outlets with diverter: designed for a multi-outlet shower installation.
-
Concealed fitting: keeps the valve body behind the wall for a tidy appearance.
-
Brass and ABS construction: with a quarter-turn ceramic disc cartridge.
-
Minimum operating pressure of 0.5 bar: check your system with your installer before ordering.
-
20-year guarantee: subject to Nuie's guarantee terms.
Technical Specification
-
Brand: Nuie
-
Range: Revolution
-
Product code: SIWTR03
-
GTIN: 5056211855163
-
Finish: Chrome
-
Style: Traditional
-
Materials: Brass and ABS
-
Installation: Concealed, wall mounted
-

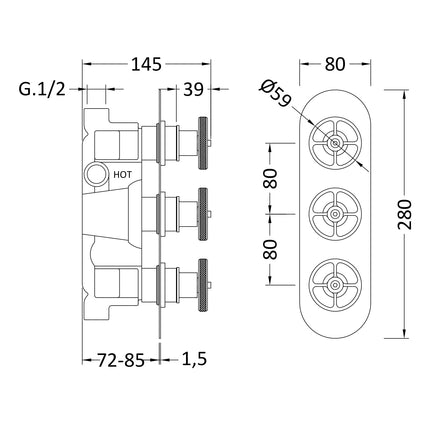

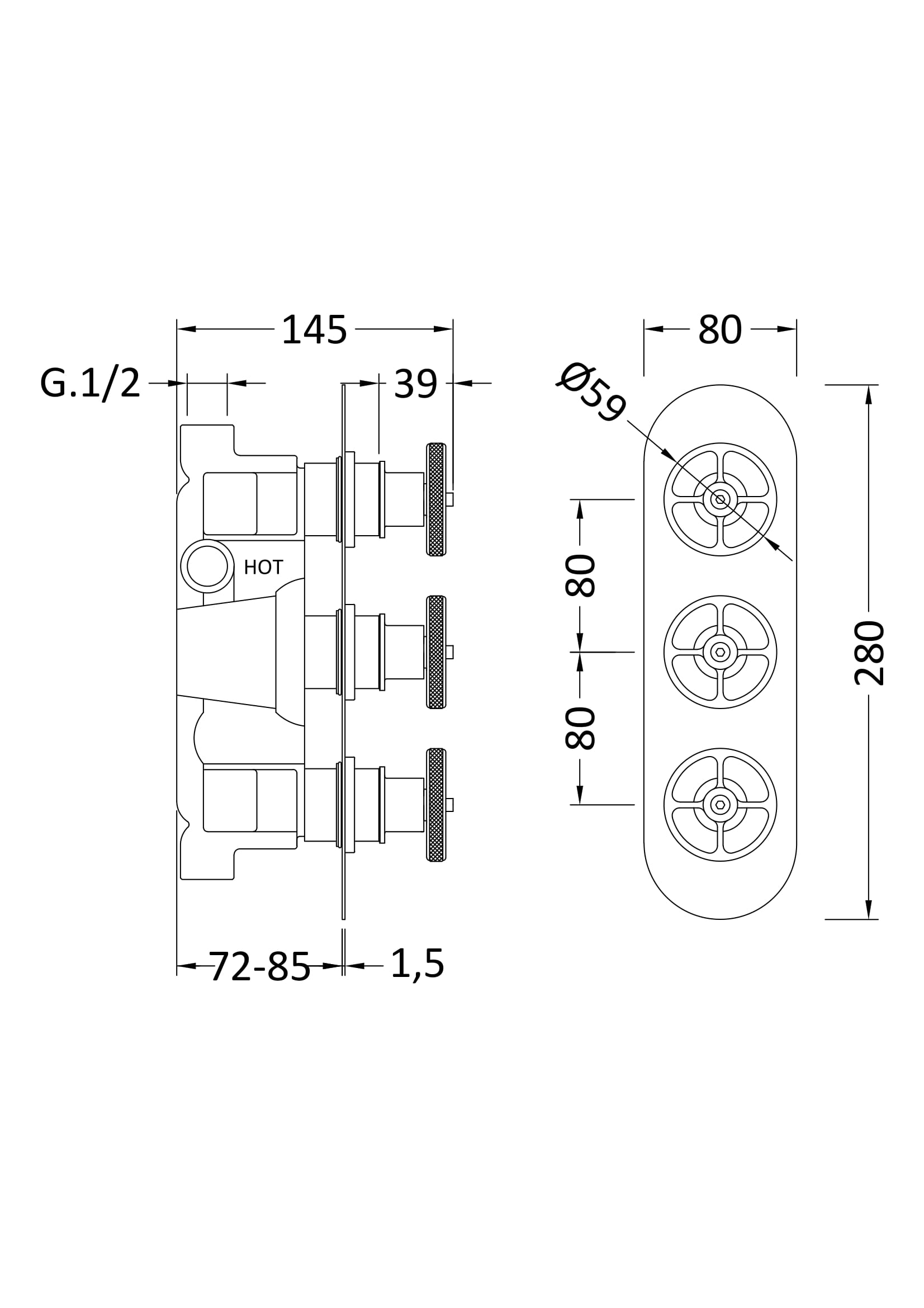

Dimensions: 280mm high × 95mm wide × 143mm deep
-
Product weight: 3.5kg
-
Handles: 3, round design
-
Outlets: 3, with diverter
-
Cartridge: Quarter-turn ceramic disc, included
-
Connection size: 22mm (3/4 inch BSP)
-
Pipe centres: 125mm
-
Minimum operating pressure: 0.5 bar
-
Listed flow rates: 13 litres/min at 0.5 bar; 17 litres/min at 1 bar; 24 litres/min at 2 bar; 27 litres/min at 3 bar
-
WRAS approval: Listed as approved, number 250602040
-
TMV2 approval: Listed as approved, number 2603035
-
TMV3 approval: No
-
Country of origin: United Kingdom
-
Guarantee: 20 years, subject to manufacturer's terms
-
Not included: Shower head and handset
Frequently Asked Questions
Does this include a shower head or handset?
No. This listing is for the shower valve with diverter. The shower head, handset and other outlet fittings are purchased separately.
What water pressure does it need?
The stated minimum operating pressure is 0.5 bar. Ask your installer to confirm that your water system can provide suitable pressure and flow for your chosen outlets.
Can all three outlets run at once?
Three outlets are specified, but simultaneous operation is not confirmed in the supplied product details. Please check the outlet arrangement with us and your installer before purchasing.
Will it fit my existing concealed valve installation?
Do not assume concealed valve bodies are interchangeable. Check the 280 × 95 × 143mm dimensions, 125mm pipe centres and 22mm (3/4 inch BSP) connections with your installer before ordering.
Can I order if the item shows as out of stock?
Yes, this non-clearance product can be ordered when out of stock. For current availability and an estimated lead time, email customerservice@bubblegumbathrooms.co.uk.
Complete Your Installation
Choose the separate fittings needed for your shower from our shower accessories and shower handsets. Ask your installer to confirm compatibility with this valve before ordering.
