Description

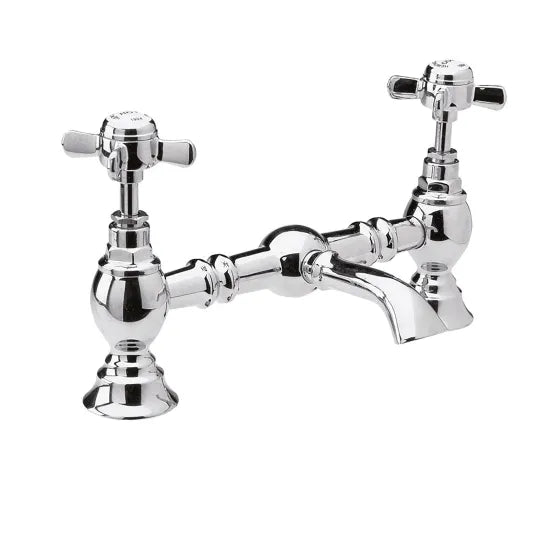

Create a classic focal point at your basin with the Nuie Beaumont bridge basin mixer. Traditional crosshead handles sit above sculpted pillars, joined by an exposed bridge and a single shared spout. Choose Chrome for a bright finish or Brushed Brass for a warmer period-inspired look, and coordinate with other Beaumont fittings.
Key Features
-
Bridge mixer design: hot and cold controls feed one shared spout, rather than two separate tap outlets.
-
Traditional crosshead handles: heritage detailing with individual hot and cold controls.
-
Two finishes: Chrome or Brushed Brass, selected above.
-
Solid brass construction: with screw-down cartridges.
-
Deck-mounted installation: for a compatible two tap-hole basin.
-
Low-pressure operation: stated minimum operating pressure of 0.1 bar, subject to installer checks.
-
Waste sold separately: choose a suitable basin waste for your installation.
-
5-year manufacturer guarantee: subject to Nuie's terms.
Technical Specification
-
Brand: Nuie
-
Range: Beaumont
-
Product type: Two-hole bridge basin mixer
-
Outlet arrangement: Single shared spout with separate hot and cold controls
-

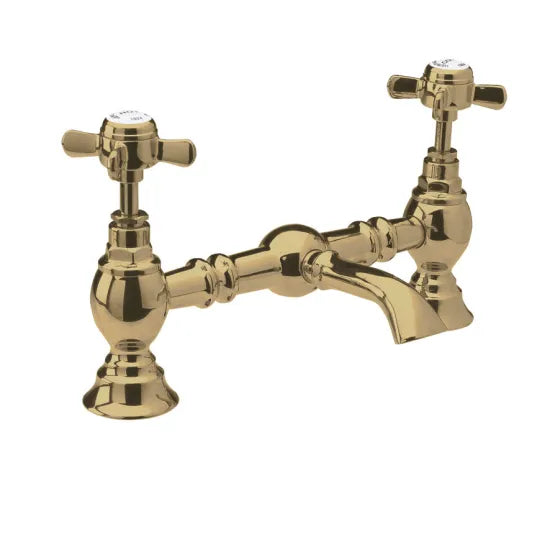

Finishes: Chrome or Brushed Brass
-
Material: Solid brass
-
Valve type: Screw-down cartridge
-
Handle style: Crosshead
-
Mounting: Deck mounted
-
Tap holes required: 2
-

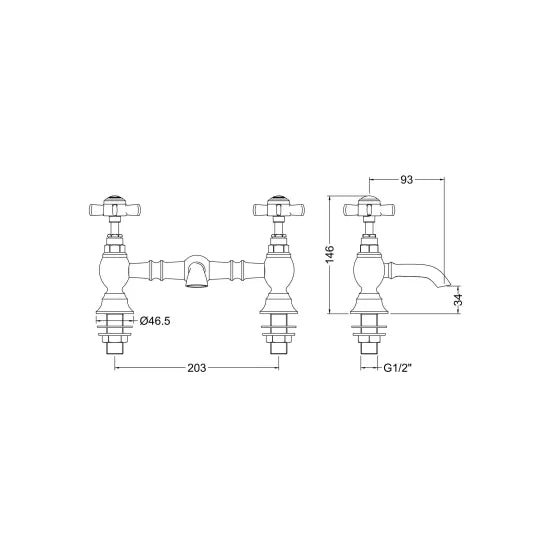

Inlet centres: 203mm, shown on the Chrome technical drawing
-
Overall height: 146mm, shown on the Chrome technical drawing
-
Spout projection: 93mm, shown on the Chrome technical drawing
-
Spout outlet height: 34mm, shown on the Chrome technical drawing
-
Base diameter: 46.5mm, shown on the Chrome technical drawing
-
Connections: G 1/2 inch, shown on the Chrome technical drawing
-
Minimum operating pressure: 0.1 bar
-
Chrome SKU: I315X
-
Brushed Brass SKU: I815X
-
Basin waste: Not included
-
Manufacturer guarantee: 5 years, subject to terms
Check Before Ordering
Check the technical drawing against your basin before purchasing. This mixer needs two suitable tap holes matching its inlet centres; it is not a freely spaced pair of separate pillar taps or a single-hole mono mixer. The dimensions above are shown on the Chrome drawing in the product images. Confirm dimensions for Brushed Brass if clearances are critical. Ask your installer to check connections, operating pressure, spout reach and outlet clearance. Do not assume suitability for a high-sided vessel basin, and do not assume thermostatic temperature control.
Frequently Asked Questions
Is this a pair of separate basin taps?
No. It is one bridge basin mixer with two crosshead controls and a single shared spout. The pillars are connected by the exposed bridge.
How many tap holes does it need?
Two. The Chrome technical drawing shows 203mm between inlet centres. Check your basin's hole spacing and confirm your selected finish's dimensions before ordering.
How does it differ from the Beaumont basin tap pair?
The separate Beaumont basin tap pair has individual hot and cold spouts. This bridge mixer combines the controls into one connected fitting with a shared outlet, so the installation requirements differ.
Can I use it with a countertop vessel basin?
Do not assume so. The Chrome drawing shows an outlet height of 34mm above the mounting surface. Ask your installer to check the basin rim, mounting position and outlet clearance before selecting this fitting.
Is it suitable for low-pressure supplies?
The stated minimum operating pressure is 0.1 bar. Have your installer confirm available pressure at the fitting and compatibility with the hot and cold supplies.
Is a basin waste included?
No. Select a separate waste that suits your basin and its overflow arrangement.
What guarantee is included?
The listed Nuie manufacturer guarantee is 5 years, subject to its terms and installation and care requirements.
Can I order if the item shows as out of stock?
If your selected finish cannot be added to your basket, please contact us to confirm availability and arrange your order. Email customerservice@bubblegumbathrooms.co.uk or call 01603 381095.
Delivery Information
This is a small, postable item covered by a one-off small item delivery charge. You can combine it with other small items in a single order and pay just one delivery charge. Browse all items covered by the small delivery charge.
Complete the Beaumont Collection
Coordinate with the Nuie Beaumont Bath Filler or Nuie Beaumont Bath Shower Mixer. For alternative basin formats, explore the Beaumont Separate Basin Tap Pair or Beaumont Mono Basin Mixer. These have different installation requirements; check each product before choosing.
