Description
Keep your bath ledge clear with the Nuie Binsey Wall Mounted Bath Shower Mixer in Chrome. Designed for built-in baths, it combines a bath-filling spout with a handheld shower on a flexible hose, making rinsing and everyday bathing more convenient. The handset stores on a fixed wall bracket, while the single lever controls water flow and temperature. A solid brass body and ceramic disc cartridge complete this practical addition to the Binsey range.
Installation check: Designed for built-in baths only, not freestanding baths. Allow for 150mm pipe centres and check the 100mm spout projection against your finished wall and bath rim before installation. Plan the concealed supplies before tiling.
Key Features
-
Bath filler and handheld shower: two bathing functions in one wall-mounted mixer.
-
Handset, flexible hose and fixed wall bracket: convenient handheld rinsing with a place to store the shower when not in use.
-
Clear bath ledge: wall mounting avoids deck-mounted tap fittings.
-
Single-lever operation: adjust temperature and flow from one control.
-
Solid brass body: durable construction for daily bathroom use.
-
Ceramic disc cartridge: smooth control and drip-resistant operation.
-
Chrome finish: coordinate with other Binsey taps.
-

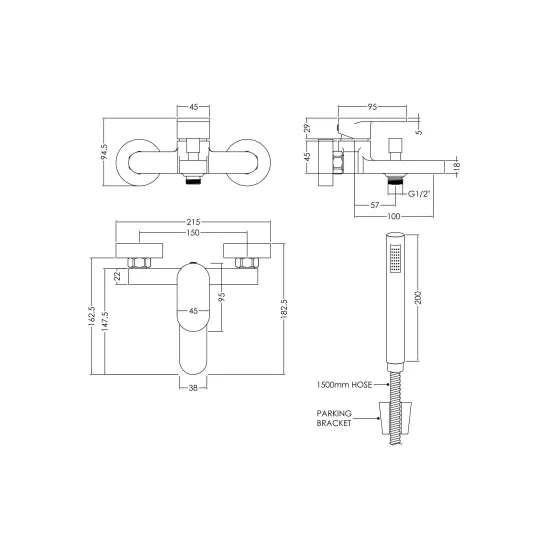

150mm pipe centres and 100mm projection: key measurements for planning your installation.
Technical Specification
-
Brand: Nuie
-
Range: Binsey
-
Product type: Wall-mounted bath shower mixer
-
Finish: Chrome
-
Body material: Solid brass
-
Operation: Single lever
-
Cartridge: Ceramic disc
-
Mounting: Wall mounted
-
Bath compatibility: Built-in baths only
-
Pipe centres: 150mm
-
Spout projection: 100mm
-
Shower arrangement: Handheld handset, flexible hose and fixed wall mounting bracket
-
Connections: ½-inch BSP
-
Model / SKU: BIN316
-
EAN: 5056211898900
-
Country of origin: China
-
Listed weight: 2.5kg
Installation Information
Have a qualified plumber check the bath position, wall construction and concealed water supplies before work begins. Set the supplies at 150mm centres and confirm the spout will clear the finished bath rim. Allow space for the handset bracket and a comfortable hose route.
Check the required operating pressure against the manufacturer's technical specification before ordering. Pipe centres alone do not confirm compatibility with existing fittings. Flush the pipework and follow the supplied installation instructions.
Frequently Asked Questions
Is this an overhead shower?
No. It includes a handheld shower on a flexible hose with a fixed wall mounting bracket. The bracket holds the handset when it is not being used; this is not a fixed overhead shower.
Can I use it with a freestanding bath?
No. This model is designed for built-in baths. Choose a suitable freestanding or deck-mounted alternative for a freestanding installation.
What pipe centres does it require?
The mixer requires 150mm pipe centres. Your plumber should confirm the supply positions and connection requirements before tiling.
How far does the spout project?
The listed spout projection is 100mm. Check this against the finished wall, bath rim and intended water landing position before ordering.
What water pressure does it need?
Confirm the minimum operating pressure from the Nuie BIN316 technical specification before ordering. If you need help, email customerservice@bubblegumbathrooms.co.uk or call 01603 381095.
Can I order if the item shows as out of stock?
Yes. This product can still be ordered when showing as out of stock, subject to availability. Contact customerservice@bubblegumbathrooms.co.uk if you need a specific lead time.
Delivery Information
This is a small, postable item covered by a one-off small item delivery charge. You can combine it with other small items in a single order and pay just one delivery charge. Browse all items covered by the small delivery charge.
