Valquest SC50T20 Replacement Thermostatic Cartridge | 20 Teeth | 53–54.75mm

Description

Restore reliable temperature control to your shower with the Valquest SC50T20 replacement thermostatic cartridge. This genuine like-for-like replacement is designed for compatible Hudson Reed, Ultra and Crosswater thermostatic bar valves using the SC50T20 cartridge. If your shower is struggling to mix hot and cold water, losing temperature stability or cutting out unexpectedly, this cartridge is designed to return it to dependable performance without modification.

⚠️ Compatibility Notice: Please check your existing cartridge or valve against the specifications below before ordering, especially the 20-spline tooth count, approximately 53mm–54.75mm diameter and 119mm–120mm length. If you are unsure, contact customerservice@bubblegumbathrooms.co.uk or call 01603 381095 before purchasing.

Key Features

  • SC50T20 replacement cartridge — direct like-for-like fit for compatible valves
  • 20-spline design — check the tooth count against your existing cartridge
  • Approx. 53mm–54.75mm diameter
  • Approx. 119mm–120mm length
  • Anti-scald protection — shuts off the water within 1.5 seconds if a supply fails
  • Three O-rings included — helps provide a complete seal
  • Compatible with Hudson Reed, Ultra and Crosswater thermostatic bar valves

Technical Specification

  • Brand: Valquest
  • Product Type: Replacement thermostatic shower cartridge
  • Part Number: SC50T20 / OEMSC50T20
  • SKU: SC50T20-M

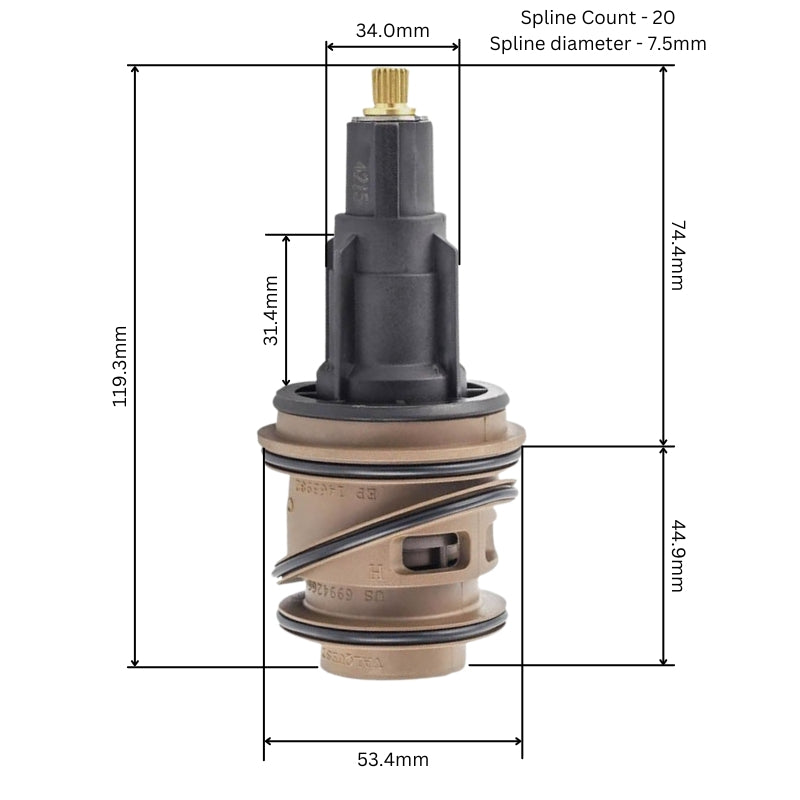

  • Spline Teeth: 20
  • Diameter: Approximately 53mm–54.75mm
  • Length: Approximately 119mm–120mm
  • O-Rings Included: 3
  • Safety Feature: Anti-scald cut-off within 1.5 seconds on supply failure
  • Compatible Brands: Hudson Reed, Ultra and Crosswater
  • HS Code: 848120

Frequently Asked Questions

How do I know if this cartridge fits my shower valve?

Check the part number on your existing cartridge. This is a direct replacement for SC50T20. Also verify the diameter, length and 20-spline configuration before ordering. If your valve uses the larger 70mm cartridge, see the DC70-T20 replacement cartridge instead.

Is this a genuine OEM replacement?

Yes. This is a genuine Valquest replacement cartridge designed as a direct like-for-like fit for compatible Hudson Reed, Ultra and Crosswater valves.

Can I order if the item shows as out of stock?

Yes. If stock shows as zero, the cartridge can still be ordered specially. It will typically be dispatched within 4 working days, subject to supplier availability.

Can I fit this cartridge myself?

Replacement is a straightforward task for a competent DIYer. Isolate the water supply, remove the valve handle and retaining nut, replace the cartridge and refit the components. If you are unsure, use a qualified plumber.

I'm not sure which cartridge I need. Can you help?

Absolutely. Contact customerservice@bubblegumbathrooms.co.uk or call 01603 381095 with your valve model or existing cartridge details, and we can help confirm compatibility before you order.

Delivery Information

This is a small, postable item covered by a one-off small item delivery charge. You can combine it with other small items in a single order and pay just one delivery charge. Browse all items covered by the small delivery charge.
