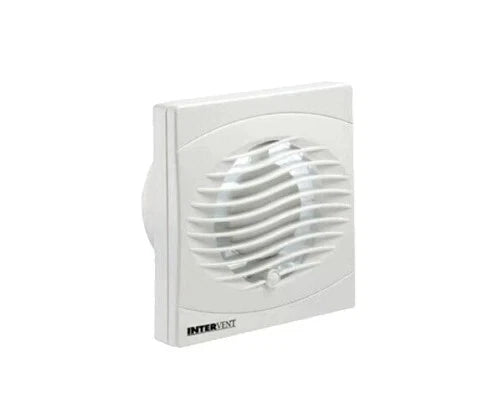

Manrose BVF100HP 100mm Bathroom Extractor Fan with Humidistat & Pullcord

Description

Help manage everyday bathroom moisture with the Manrose Intervent BVF100HP 100mm bathroom extractor fan. Part of the Manrose Contractor Range, this white wall-mounted axial fan combines an adjustable humidistat with pull-cord manual override, giving you automatic humidity-triggered extraction and convenient manual control. Its compact square faceplate fits neatly into bathroom and en-suite schemes, whether you are renovating or planning a new installation.

Key Features

  • Adjustable humidity control: set the humidistat between 40% and 95% relative humidity to trigger extraction as moisture rises.
  • Pull-cord manual override: operate the fan manually when required.
  • 100mm (4-inch) axial fan: delivers a stated airflow of 85m³/hr (23 litres per second).
  • 15W motor: with pre-oiled, maintenance-free bearings.
  • White ABS thermoplastic housing: durable, easy-to-clean finish with a 155 × 155mm faceplate.
  • Published sound level: 41dB(A) at 3 metres.
  • Simple control specification: single speed, without timed overrun or an integral backdraught shutter.

Technical Specification

  • Brand: Manrose
  • Range: Intervent / Contractor Range
  • Model / SKU: BVF100HP
  • Fan type: axial bathroom extractor fan
  • Diameter: 100mm (4 inches)
  • Airflow: 85m³/hr (23 l/s)
  • Sound level: 41dB(A) at 3m
  • Power: 15W
  • Voltage: 240V
  • Speed settings: single speed
  • Controls: adjustable humidistat and pull-cord manual override
  • Humidistat range: 40–95% RH
  • Timed overrun: no
  • Mounting: wall mounted
  • Faceplate: 155mm high × 155mm wide
  • Lip depth: 26mm
  • IP rating: IP20
  • Integral backdraught shutter: no
  • Colour: White
  • Housing: ABS thermoplastic
  • Bearings: pre-oiled, maintenance-free
  • Barcode: 5013206050100

Frequently Asked Questions

How does the humidistat work?

The adjustable humidistat triggers the fan when relative humidity rises above your selected level. Its stated adjustment range is 40–95% RH, allowing the installer to set a suitable trigger point.

Can I switch it on manually?

Yes. The pull cord provides manual override alongside the automatic humidity control.

Does this model have a timer?

No. The BVF100HP uses humidistat and pull-cord control and does not have a timed overrun function. If timed operation is essential, choose a model that specifically includes it.

Where can it be installed?

This is an IP20 wall-mounted fan. Do not assume it is suitable for positions exposed to splashes or water jets. A qualified electrician should confirm the proposed location against the manufacturer's instructions and current electrical requirements before installation.

Is a backdraught shutter included?

No integral backdraught shutter is specified. Ask your installer which ducting, external outlet and any additional backdraught protection are appropriate for your installation.

Does it need professional installation?

Yes. The fan requires hardwired electrical installation by a qualified electrician. They should also confirm the ventilation requirements, duct route and suitability for your room, including any proposed wet-room installation.

How loud is it?

The stated sound level is 41dB(A), measured at 3 metres. Compare sound ratings measured under the same conditions when choosing between fans.

Need help choosing the right fan?

Email customerservice@bubblegumbathrooms.co.uk or call 01603 381095 for help comparing the available options.

Delivery Information

This is a small, postable item covered by a one-off small item delivery charge. You can combine it with other small items in a single order and pay just one delivery charge. Browse all items covered by the small delivery charge.

Complete Your Installation

Explore the 100mm ventilation accessory kit with 3m flexible ducting, an external grille and clamps. Ask your installer to check the connections and permitted duct run before ordering accessories.

Browse bathroom extractor fans and ventilation accessories to compare alternative controls and installation options.
