Description
Give a compact basin a clean, coordinated finish with the Nuie Vibe Mini Basin Mixer Tap in Chrome. At 137mm high with a 100mm spout projection, it offers a compact option for cloakrooms, en-suites and main bathrooms where the basin dimensions suit. A single lever controls the water, while the included push-button waste completes the basin's everyday operation without a separate plug and chain.
Key Features
-
Compact mini mixer: 137mm high, designed to suit an appropriately sized basin.
-
Single-lever control: adjust flow and temperature using one handle.
-
Chrome finish: contemporary styling that coordinates with chrome bathroom fittings.
-
One-tap-hole installation: deck-mounted mono basin mixer.
-
Waste included: supplied with a push-button basin waste, cartridge and tap tails.
-
Brass and plastic construction: materials as specified for this model.
-
5-year manufacturer's guarantee: for added reassurance.
Technical Specification
-
Brand: Nuie
-
Range: Vibe
-
Product code: TSI315
-
GTIN: 5055275824399
-
Finish: Chrome
-
Style: Contemporary
-
Material: Brass and plastic
-
Height: 137mm
-
Width: 48mm
-
Depth: 131mm
-
Spout height: 70mm
-
Spout projection: 100mm
-
Product weight: 0.56kg
-
Mounting: Deck-mounted
-
Tap holes required: 1
-
Handles: 1 lever
-
Control: Manual, single-lever cartridge
-
Listed operating pressure: 0.2 bar
-
Included: Push-button waste, cartridge and tap tails
-
Guarantee: 5 years
-
WRAS approved: No, according to the supplied specification
-
TMV2 approved: No
-
TMV3 approved: No
Listed Flow Rates
-
At 0.1 bar: 2.2 litres per minute
-
At 0.5 bar: 7 litres per minute
-
At 1 bar: 10.3 litres per minute
-
At 2 bar: 14.7 litres per minute
-
At 3 bar: 18.2 litres per minute
The supplied data includes a flow figure at 0.1 bar but lists an operating pressure of 0.2 bar. Do not treat the 0.1-bar flow figure as confirmation of suitability below the listed operating pressure. Ask your installer to confirm suitability for your water system.
Frequently Asked Questions
Is this suitable for a cloakroom basin?

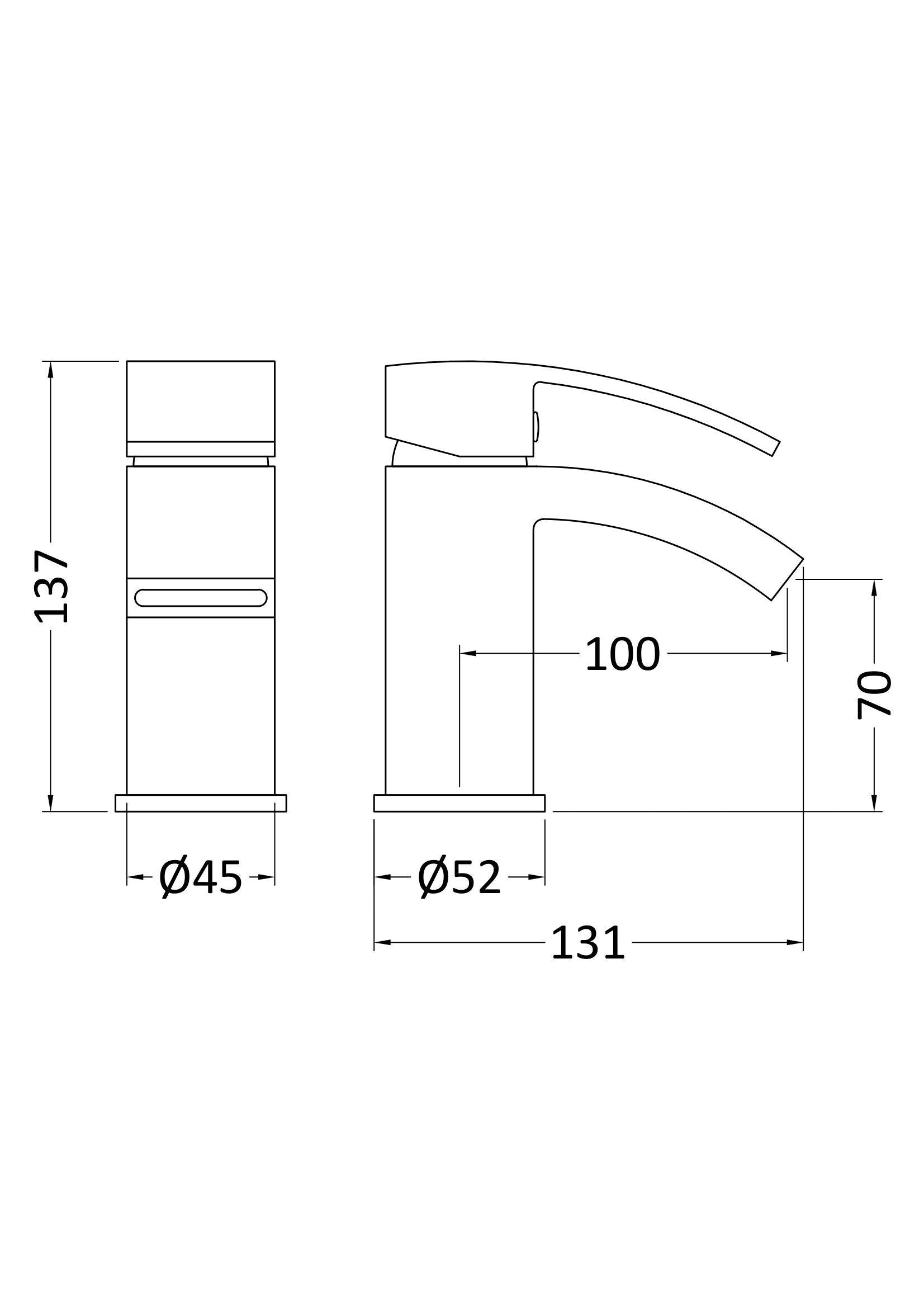

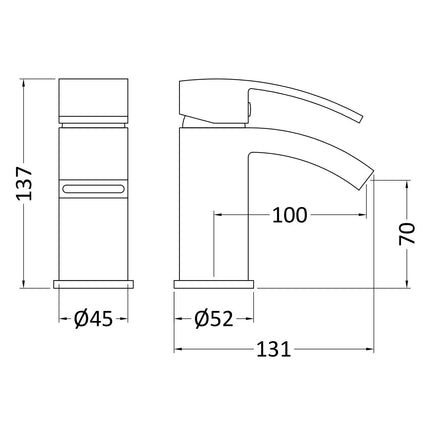

Its mini format can suit compact basins, provided the measurements work for your installation. Check the 137mm overall height, 70mm spout height and 100mm spout projection against your basin before ordering.
Is the waste included?
Yes. A push-button basin waste is included, along with the cartridge and tap tails. The supplied specification does not identify whether the waste is slotted or unslotted, so confirm its suitability for your basin's overflow arrangement before installation.
How many tap holes does it need?
One. This is a deck-mounted mono basin mixer operated by a single lever.
What water pressure does it need?
The listed operating pressure is 0.2 bar. Have your installer check your available pressure and desired flow before ordering, particularly for a low-pressure system.
Is this a thermostatic tap?
It is specified as a manually controlled single-lever mixer, with no TMV2 or TMV3 approval. It should not be selected as a thermostatic safety control.
Which finish is this listing for?
This listing is for Chrome, product code TSI315. The supplied range information mentions other finishes, but they are not selectable options on this listing.
Can I order if the item shows as out of stock?
Yes. This non-clearance product can be ordered when showing as out of stock. For availability or a specific installation date, contact us at customerservice@bubblegumbathrooms.co.uk before ordering.
Delivery Information
This is a small, postable item covered by a one-off small item delivery charge. You can combine it with other small items in a single order and pay just one delivery charge. Browse all items covered by the small delivery charge.
Complete Your Installation
Check the basin's tap-hole position, overflow arrangement and waste connection with your installer. If you are looking for matching Vibe fittings, contact us at customerservice@bubblegumbathrooms.co.uk and we can help you choose suitable pieces.
