Description

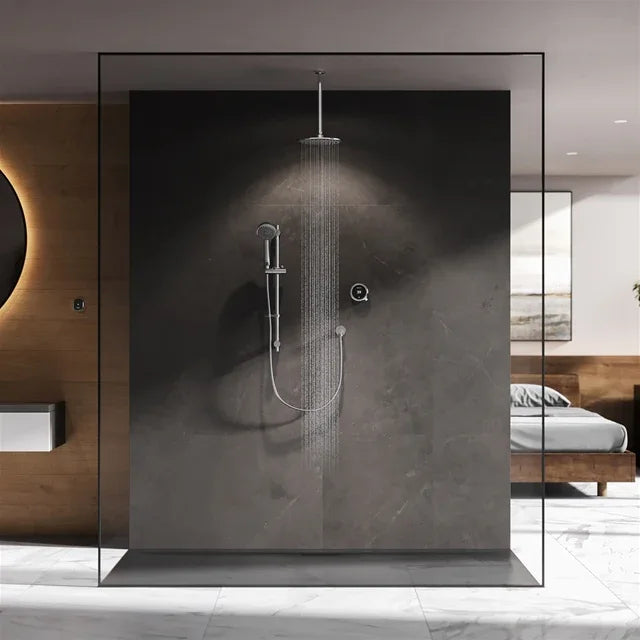

Bring overhead showering and handheld flexibility together with the Aqualisa Quartz Touch concealed two-outlet smart shower. The chrome fixed ceiling head delivers water from directly above, while the adjustable slide rail and 90mm four-spray handset let you direct the spray where you need it. A digital diverter switches between the two outlets from the touch interface.
One-touch start/stop, LED temperature indication and Aqualisa app connectivity make everyday showering straightforward. Choose the High Pressure / Combi or Gravity version to match your home's water supplies.
Key Features
-
Two-outlet configuration: fixed ceiling-mounted head and adjustable slide rail handset.
-
Digital diverter: switch between overhead and handheld showering.
-

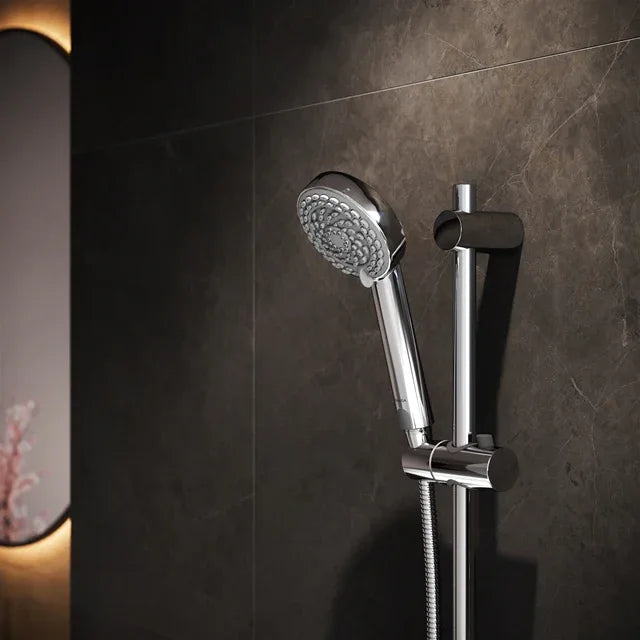

Four-spray handset: 90mm head with a choice of spray patterns.
-

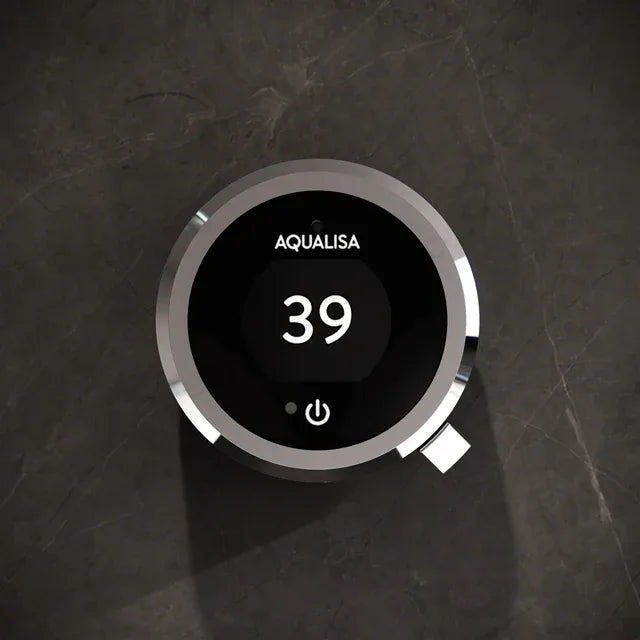

Touch-sensitive control: one-touch start/stop operation.
-
LED temperature indication: indicates when the selected temperature is reached.
-
Wi-Fi app connectivity: remote start/stop, timer, dashboard and usage tracking through the Aqualisa app with suitable setup.
-
Voice-control compatibility: Alexa and Google Home with the appropriate connected setup.
-

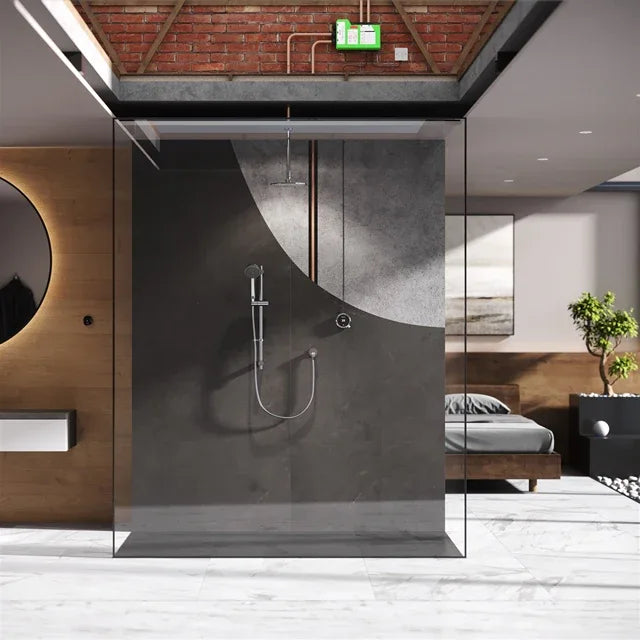

Remote SmartValve siting: keeps the valve away from the showering area for an uncluttered finish.
-
Guarantee: five years for the unit and two years for the shower head and kit, subject to manufacturer terms.
Technical Specification
-
Brand: Aqualisa
-
Range: Quartz Touch
-
Product type: Concealed smart digital divert shower
-
Outlets: Two, fixed ceiling head and adjustable handset
-
Finish: Chrome
-

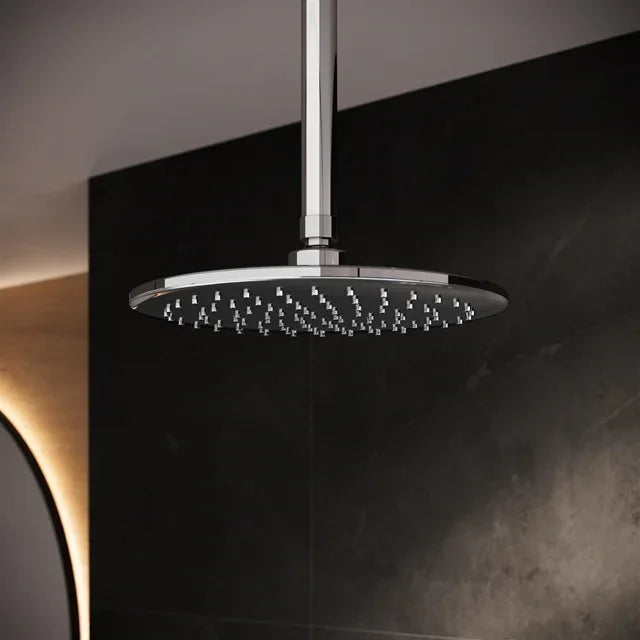

Fixed head mounting: Ceiling-mounted
-
Handset: 90mm, four spray patterns
-
Slide rail: Adjustable, included
-
Outlet selection: Digital diverter
-
Control: Touch-sensitive start/stop with LED temperature indication
-
Connectivity: Wi-Fi and Aqualisa app; Alexa and Google Home compatible
-
HP/Combi pressure range: 1–5 bar
-
Gravity pressure range: 0.1–1 bar
-
Inlet and outlet connections: 15mm push-fit
-
Valve inlet centres: 48mm
-
Supply orientation: Hot right, cold left
-
Listed cold inlet temperature: 1–15°C
-
Maximum hot inlet temperature: 65°C
-
HP/Combi SKU: QZST.A1.BV.DVFC.23 | GTIN: 5023942294165
-
Gravity SKU: QZST.A2.BV.DVFC.23 | GTIN: 5023942294240
-
Guarantee: Five years for unit; two years for head and kit, subject to manufacturer terms
Before You Order
Have a qualified installer identify your water system and confirm the correct variant, supply requirements and installation layout. Ceiling-head installation requires suitable ceiling support, pipe routing and waterproofing. The SmartValve may be remotely sited in a suitable loft, airing cupboard or under-bath location, following the manufacturer's instructions, and must remain accessible for servicing. Connected features require suitable Wi-Fi and setup.
Frequently Asked Questions
What are the two outlets?
The two outlets are the fixed ceiling-mounted head and the adjustable slide rail handset. The digital diverter lets you switch between them.
How is this different from the wall-head model?
The fixed overhead head is mounted from the ceiling rather than from the wall. This changes the installation layout, so have your installer check ceiling support and pipe routing before ordering.
Does two-outlet mean both heads run together?
This listing describes switching between the outlets. Do not assume simultaneous operation; ask your installer to confirm the manufacturer's operating instructions if that feature is essential to your plans.
Which water-system version should I choose?
Select High Pressure / Combi or Gravity to match your home's supplies. Ask your installer to identify the system before ordering. An immersion heater alone does not establish which version you need.
Does this heat cold water like an electric shower?
No. The SmartValve mixes hot and cold supplies. This is not an instantaneous electric shower.
Can I control it from my phone?
Yes, with suitable Wi-Fi and Aqualisa app setup. Connected features include remote start/stop and shower timing. Alexa and Google Home compatibility requires the relevant connected setup.
Is the wireless remote included?
No. The Quartz Touch wireless remote is an optional accessory sold separately. Follow the link below and check compatibility before ordering.
What is the guarantee?
The listed guarantee is five years for the shower unit and two years for the shower head and kit, subject to manufacturer terms.
Can I order if the item shows as out of stock?
Yes. This item can be ordered even when stock shows as zero. For current availability and lead times, call 01603 381095 or email customerservice@bubblegumbathrooms.co.uk.
Complete the Quartz Touch Collection
Alternative shower systems are separate products, not additional components supplied with this kit.
