Description

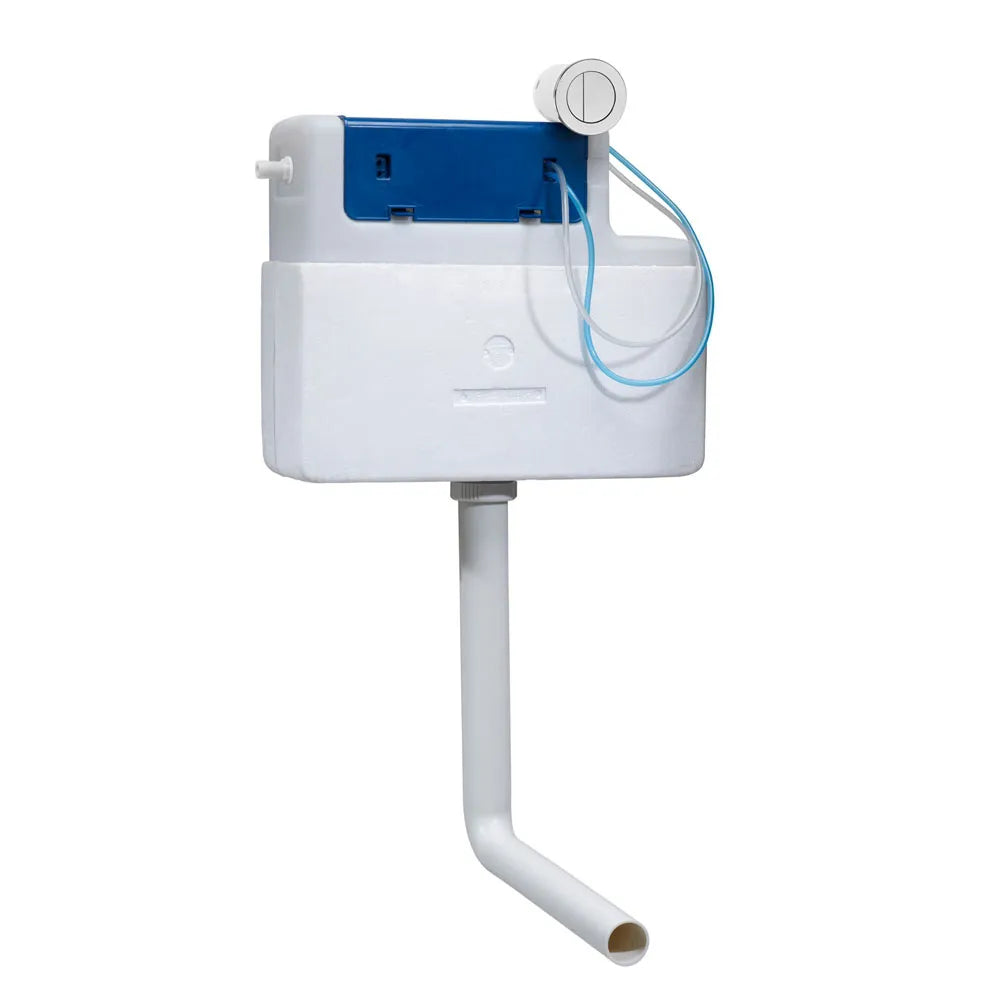

Keep the flushing system neatly concealed with the Tavistock Apex TR9002 Side Inlet Concealed Cistern. Its 135mm listed depth offers a slimline option for compatible WC furniture, while top and front access help your installer plan practical servicing access.
Supplied pre-assembled with a pneumatic dual-flush valve, the Apex provides 3-litre reduced and 6-litre full flush settings. Pair it with a compatible pneumatic flush plate, sold separately, to coordinate the visible controls with your bathroom fittings.
Key Features
-
Slimline body: listed 135mm cistern depth for installations where available space matters.
-
Side-entry inlet: check supply positioning with your installer before ordering.
-
Pneumatic dual flush: 3-litre reduced and 6-litre full flush settings.
-
Pre-assembled cistern: supplied with a pneumatic dual-flush valve; professional fitting and setup are still required.
-
Top and front access: plan a suitable maintenance opening in your furniture or enclosure.
-
Separate flush plate: choose a compatible pneumatic model to suit your finish scheme.
-
Listed working pressure: 0.2–10.0 bar.
Technical Specification
-
Brand: Tavistock / Roper Rhodes
-
Range: Apex
-
Product code: TR9002
-
Alternative range name: Roper Rhodes Cascade
-
Product type: concealed cistern
-
Inlet: side entry
-
Actuation: pneumatic dual flush
-
Flush settings: 3 / 6 litres
-

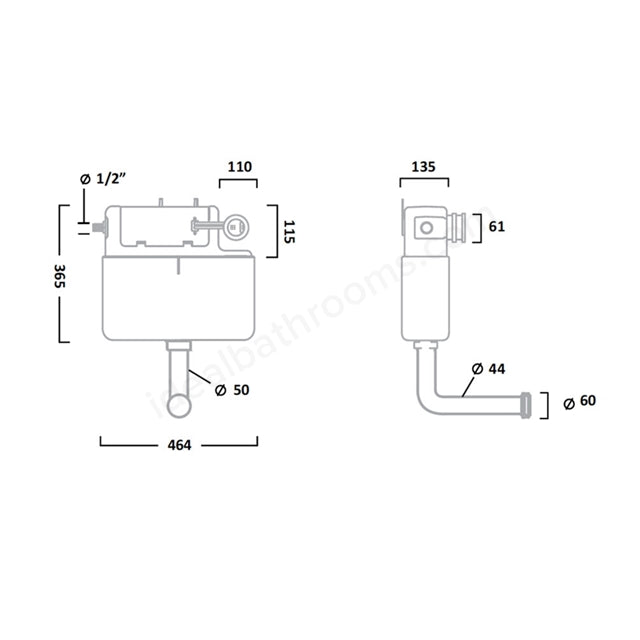

Listed width: 464mm
-
Listed depth: 135mm
-
Listed working pressure: 0.2–10.0 bar
-
Service access: top and front
-
Colour: white
-
Flush plate: sold separately
Installation & Compatibility
Designed for compatible back-to-wall WC and furniture installations. Check your exact pan, furniture unit, flush-pipe alignment, inlet position and available installation space before ordering. The cistern's body depth alone does not establish the complete clearance needed for pipework, fittings and maintenance access.
Your installer should confirm operating pressure, connections and suitable flush settings for the pan. Keep an accessible route to service the inlet and flush valves after installation. A concealed cistern is not a load-bearing WC support frame; wall-hung pans require their own suitable support system.
Frequently Asked Questions
Is a flush plate included?
No. A compatible pneumatic flush plate is required and sold separately. The linked Premium Pneumatic Flush Plate range lists TR9002 compatibility.
Will it fit my WC furniture?
Check the complete installation requirements with your installer. The listed cistern dimensions are 464mm wide and 135mm deep, but additional room is needed for the installation's connections and access. Do not assume every furniture unit will fit.
What are the flush volumes?
The listed dual-flush settings are 3 litres for a reduced flush and 6 litres for a full flush. Your installer should confirm these suit your WC pan and set up the cistern accordingly.
What water pressure does it require?
The listed working-pressure range is 0.2–10.0 bar. Ask your installer to check your actual supply pressure and the manufacturer's fitting instructions before installation.
How is it accessed for servicing?
The cistern offers top and front access. Your installer must provide a suitable accessible opening in the finished furniture or enclosure.
Is this also called the Roper Rhodes Cascade?
This TR9002 listing is also identified as the Roper Rhodes Cascade. Match the product code and fitting requirements when comparing or replacing an existing cistern.
Can I order if the item shows as out of stock?
Yes. Out-of-stock ordering is enabled for this non-clearance product, subject to supplier availability. For a current lead time, email customerservice@bubblegumbathrooms.co.uk or call 01603 381095.
Delivery Information
This is a small, postable item covered by a one-off small item delivery charge. You can combine it with other small items in a single order and pay just one delivery charge. Browse all items covered by the small delivery charge.
Complete Your Installation
Choose your visible flush control separately and confirm compatibility before ordering:
