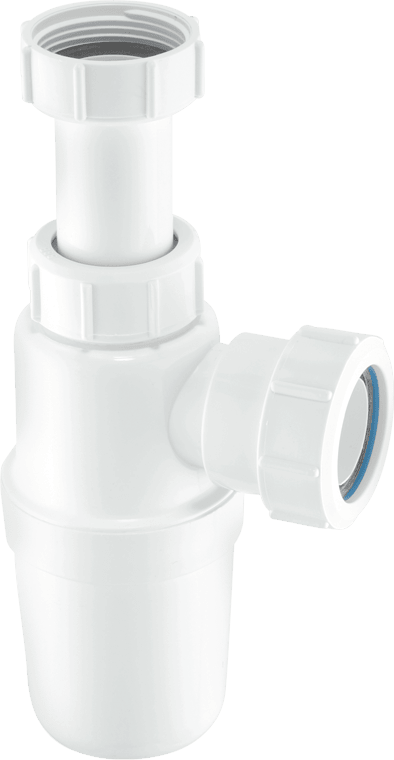

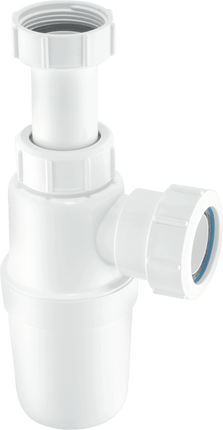

McAlpine AA10 Resealing Bottle Trap | 75mm Seal | Self-Ventilating | 1¼" Outlet

Description

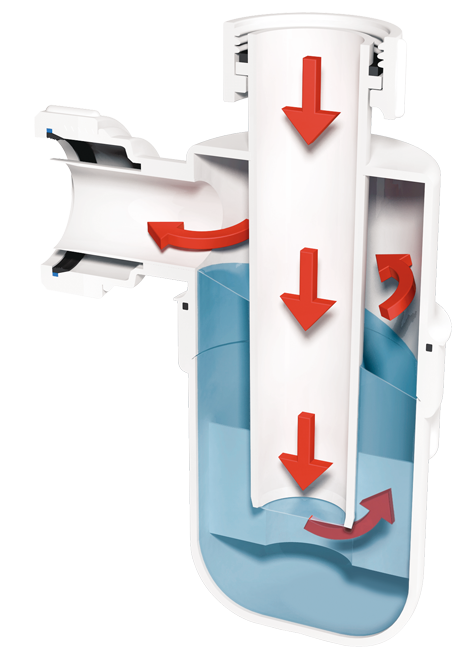

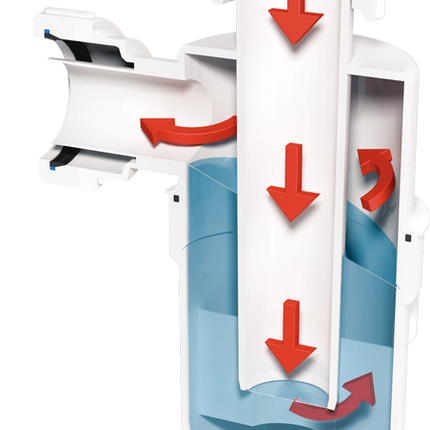

The McAlpine AA10 is a self-ventilating resealing bottle trap — designed for basin and sink installations where secondary ventilation isn't practical. When syphonic conditions occur, the automatic hydraulic action draws air through the bypass columns to break the syphon; once conditions normalise, remaining water falls back to reseal the trap. No mechanical parts, no secondary vent pipe required.

Key Features

  • 75mm water seal — superior odour protection; deeper than the standard 50mm seal
  • Self-ventilating / resealing design — eliminates the need for secondary ventilation; no moving parts to fail
  • Adjustable inlet — fits all standard domestic basin and sink wastes

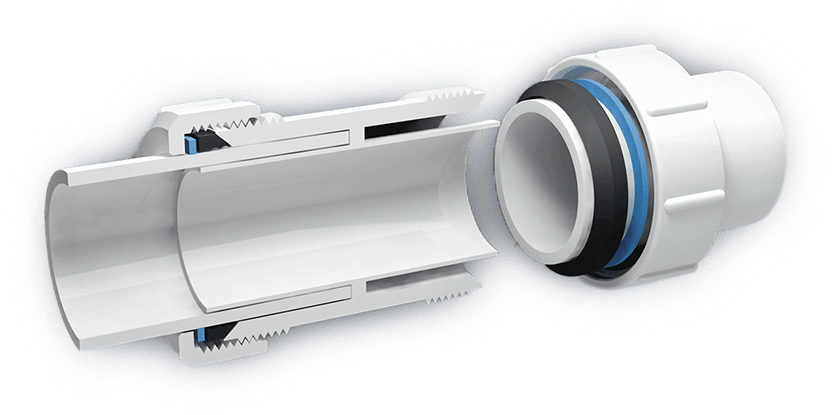

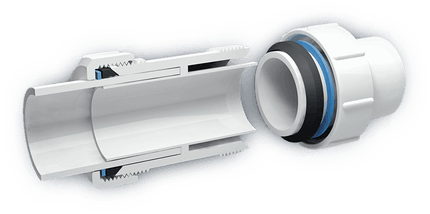

  • 1¼" (32mm) multifit compression outlet — compatible with plastic, copper, and lead waste pipes
  • Polypropylene construction — durable, corrosion-resistant, and chemical-resistant
  • BS EN 274-1:2002 compliant — meets British and European performance standards

Technical Specification

Model AA10
Type Resealing bottle trap
Water Seal 75mm
Outlet Size 1¼" (32mm)
Outlet Type Multifit compression
Inlet Adjustable
Material Polypropylene
Pipe Compatibility Plastic, copper, lead
Standard BS EN 274-1:2002
Weight 0.15kg
Brand McAlpine

You May Also Need

Frequently Asked Questions

What is a resealing bottle trap?

A resealing (or self-ventilating) trap is designed to prevent the water seal from being lost under syphonic conditions — where fast-flowing water in the waste pipe creates a vacuum that can suck the water out of a standard trap. The AA10 uses a hydraulic bypass mechanism to break the syphon and allow the trap to reseal automatically, without needing a separate anti-syphon valve or vent pipe.

Do I need secondary ventilation with this trap?

No — the self-ventilating design of the AA10 eliminates the need for secondary ventilation in most domestic installations. This makes it particularly useful in situations where running a vent pipe is impractical or impossible.

Can I order if the item shows as out of stock?

Yes — this product can be ordered even when showing as out of stock, and we'll fulfil your order as soon as stock is available. If you need a specific delivery timeframe, please contact us at customerservice@bubblegumbathrooms.co.uk before ordering.

McAlpine AA10 Resealing Bottle Trap | 75mm Seal | Self-Ventilating | 1¼" Outlet

Product form

📦 £4.99 Delivery: A small item delivery charge applies — you can combine multiple small items in a single order and pay just one charge.

The McAlpine AA10 is a self-ventilating resealing bottle trap — designed for basin and sink installations where secondary ventilation isn't... Read more

Free pickup in our shop(s)

2 in stock 1-3 Days

£18.00  £8.00

Only £4.99 Delivery

    • Guaranteed secure & safe checkout.

      paypal
    • We aim to dispatch stocked items same day 1-2 day delivery
    • Non stocked items are ordered direct 2-7 day delivery
    • Several items? ask for a bespoke price!
    • Wetwall Free Delivery On Orders Over £250
    • FREE Collection from Norwich
    • No hassle returns, 30 days return

    Description

    The McAlpine AA10 is a self-ventilating resealing bottle trap — designed for basin and sink installations where secondary ventilation isn't practical. When syphonic conditions occur, the automatic hydraulic action draws air through the bypass columns to break the syphon; once conditions normalise, remaining water falls back to reseal the trap. No mechanical parts, no secondary vent pipe required.

    Key Features

    • 75mm water seal — superior odour protection; deeper than the standard 50mm seal
    • Self-ventilating / resealing design — eliminates the need for secondary ventilation; no moving parts to fail
    • Adjustable inlet — fits all standard domestic basin and sink wastes
    • 1¼" (32mm) multifit compression outlet — compatible with plastic, copper, and lead waste pipes
    • Polypropylene construction — durable, corrosion-resistant, and chemical-resistant
    • BS EN 274-1:2002 compliant — meets British and European performance standards

    Technical Specification

    Model AA10
    Type Resealing bottle trap
    Water Seal 75mm
    Outlet Size 1¼" (32mm)
    Outlet Type Multifit compression
    Inlet Adjustable
    Material Polypropylene
    Pipe Compatibility Plastic, copper, lead
    Standard BS EN 274-1:2002
    Weight 0.15kg
    Brand McAlpine

    You May Also Need

    Frequently Asked Questions

    What is a resealing bottle trap?

    A resealing (or self-ventilating) trap is designed to prevent the water seal from being lost under syphonic conditions — where fast-flowing water in the waste pipe creates a vacuum that can suck the water out of a standard trap. The AA10 uses a hydraulic bypass mechanism to break the syphon and allow the trap to reseal automatically, without needing a separate anti-syphon valve or vent pipe.

    Do I need secondary ventilation with this trap?

    No — the self-ventilating design of the AA10 eliminates the need for secondary ventilation in most domestic installations. This makes it particularly useful in situations where running a vent pipe is impractical or impossible.

    Can I order if the item shows as out of stock?

    Yes — this product can be ordered even when showing as out of stock, and we'll fulfil your order as soon as stock is available. If you need a specific delivery timeframe, please contact us at customerservice@bubblegumbathrooms.co.uk before ordering.
