Description

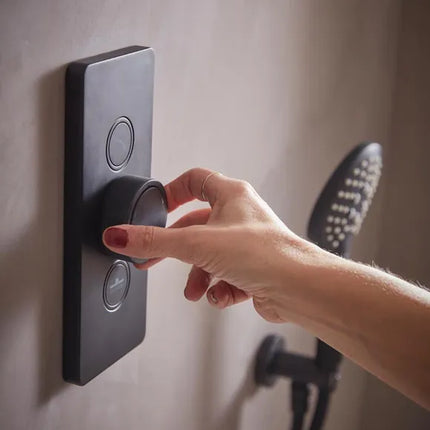

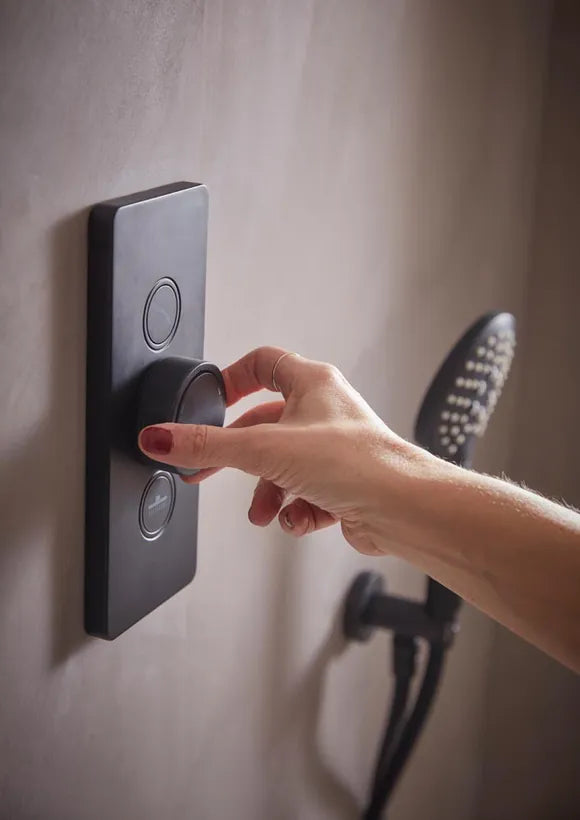

Build a streamlined shower space with the Tavistock Axiom SAX2764 Dual Outlet Push-Button Concealed Thermostatic Shower Valve in Matt Black. The valve body sits behind the wall, leaving the controls and cover plate visible for an uncluttered finish. Pair it with your chosen compatible shower fittings and enjoy push-button operation with separate temperature adjustment.
Last of our clearance allocation: this is a temporary overstock offer, not a discontinued product. Once the reduced-price stock sells, we will continue selling this model at a higher price.
Valve only: shower heads, handsets, hoses, arms, rails and outlet fittings are sold separately.
Key Features
-
Dual outlet control: use two compatible shower outlets, such as an overhead shower and handset.
-
Simultaneous operation: the technical sheet confirms both outlets can run together, subject to adequate supply pressure and flow.
-
Push-button activation: straightforward on/off control.
-
Thermostatic temperature control: helps maintain the selected shower temperature.
-
Concealed installation: keeps the valve body behind the finished wall.
-
Integrated isolation points: confirmed in the technical sheet.
-
Matt black controls and cover plate: coordinate with compatible black shower accessories.
-
Listed 10-year manufacturer guarantee: including the thermostatic cartridge, subject to terms and exclusions.
Technical Specification
-
Brand: Tavistock
-
Range: Axiom
-
Model / SKU: SAX2764
-
Finish: Matt Black
-
Product type: concealed dual outlet thermostatic shower valve
-
Operation: push-button on/off with separate flow and temperature controls
-
Simultaneous outlet operation: yes
-
Pipework: 15mm
-
Valve connections: 1/2 inch
-
Isolation points: included
-
Timber stud depth: minimum 89mm
-
Frame installation: designed to fit between studs at 400mm centres
-
Laboratory flow at 1 bar: 10.6 litres per minute
-
Laboratory flow at 2 bar: 14.5 litres per minute
-
Laboratory flow at 3 bar: 17.6 litres per minute
-
Barcode: 5016519554809
-
Listed guarantee: 10 years including thermostatic cartridge, subject to terms
Flow rates are laboratory test figures. Actual performance depends on your domestic supply and selected accessories; they are not guaranteed installed flow rates.
What's Included
- First-fix mounting frame with isolators
- First-fix thermostatic valve with levelling plate
- Second-fix controls and cover plate
- Installation fixings
Installation Considerations
Have a qualified installer check pressure, available flow, wall construction, recess depth and servicing access before purchase. The technical sheet specifies 15mm pipework, 1/2-inch connections and at least 89mm timber stud depth, with the installation frame designed for 400mm stud centres. For brick walls, it recommends using CLS of 89mm depth within the wall. Check the full instructions and supplied components before preparing the recess.
Frequently Asked Questions
Is this a complete shower system?
No. This is the concealed valve with its controls, cover plate and listed installation components. Shower heads, handsets and outlet accessories are purchased separately.
Can both outlets run at the same time?
Yes. The SAX2764 technical sheet confirms simultaneous operation. Your installer must ensure the water supply can provide suitable pressure and flow for your chosen fittings.
Is the valve thermostatic?
Yes. Thermostatic temperature control helps maintain your selected temperature. Correct installation and commissioning are essential.
What pipework and connections does it use?
The technical sheet specifies 15mm pipework and 1/2-inch valve connections. Isolation points are included.
What wall space is required?
The sheet specifies a minimum 89mm timber stud depth and a frame designed to fit between studs at 400mm centres. For brick walls, it recommends 89mm-depth CLS within the wall. Ask your installer to confirm the complete recess and finished-wall requirements.
What water pressure is required?
The technical sheet provides test data from 0.5 bar upwards but does not explicitly state a minimum operating pressure. Ask your installer to confirm the manufacturer's requirements for your proposed outlet arrangement before ordering.
Is this being discontinued?
No. This is the last of our current clearance allocation. We will continue selling the model at a higher price after that stock has sold.
Can I order if the item shows as out of stock?
The clearance offer applies only to the remaining allocation. If the listing shows as unavailable, email customerservice@bubblegumbathrooms.co.uk for the current price and availability.
Delivery Information
This is a small, postable item covered by a one-off small item delivery charge. You can combine it with other small items in a single order and pay just one delivery charge. Browse all items covered by the small delivery charge.
Complete the Axiom Collection
Prefer a shower package? Compare the Tavistock Axiom SAX2762 Matt Black shower system with overhead shower and handset. This is an alternative package, not an accessory to add to this valve. You can also browse all Tavistock products.
