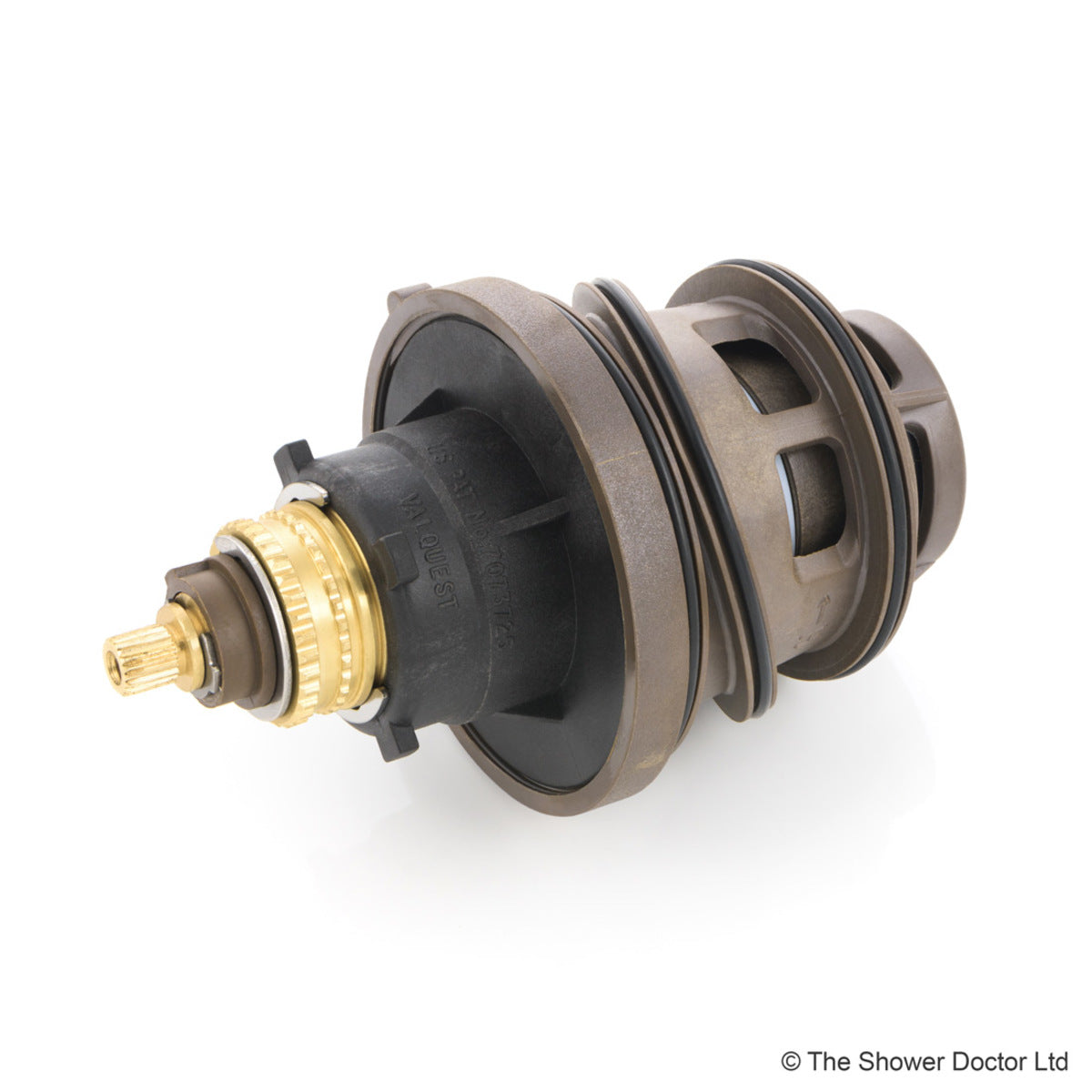

Valquest DC70-T20 Replacement Thermostatic Cartridge | 70mm | 20 Teeth

Description

Restore accurate, dependable temperature control with the Valquest DC70-T20 replacement thermostatic cartridge. This OEM-spec cartridge is designed for compatible thermostatic shower valves from Hudson Reed, Ultra Finishing, Crosswater and Nuie. If your shower is struggling to hold a steady temperature, cutting out unexpectedly or showing signs of cartridge wear, the DC70-T20 can help return it to reliable performance.

⚠️ Compatibility Notice: Please check your existing cartridge or valve against the specifications below before ordering, especially the 70mm diameter, 117mm length and 20-spline tooth count. If you are unsure, contact customerservice@bubblegumbathrooms.co.uk or call 01603 381095 before purchasing.

Key Features

  • DC70-T20 replacement cartridge — designed for compatible thermostatic shower valves
  • 20-spline design — check the tooth count against your existing cartridge
  • 70mm diameter and 117mm length — verify dimensions before ordering
  • Fully reversible — operates even where hot and cold supplies are reversed
  • Anti-scald protection — shuts off the water within 1.5 seconds if a supply fails
  • Low- and high-pressure compatible — suitable from 0.1 bar dynamic pressure up to 10 bar static pressure
  • Temperature stability — maintains the selected temperature to approximately ±1°C when pressure fluctuates
  • Push-fit installation — designed for straightforward cartridge replacement
  • Suitable for dual shower valves requiring independent temperature and flow control

Technical Specification

  • Brand: Valquest
  • Product Type: Replacement thermostatic shower cartridge
  • Part Number: DC70-T20
  • SKU: DC70T20-M
  • Spline Teeth: 20
  • Spindle Diameter: 7.6mm, approximately 7.5mm
  • Diameter at Shoulder: 70mm
  • Length: 117mm
  • Maximum Working Pressure: 10 bar static
  • Minimum Working Pressure: 0.1 bar dynamic
  • Hot Supply Temperature: 55°C–65°C
  • Maximum Cold Supply Temperature: 25°C
  • Maximum Inlet Pressure Ratio: 5:1
  • Compatible Brands: Hudson Reed, Ultra Finishing, Crosswater and Nuie
  • HS Code: 848120

Frequently Asked Questions

How do I know if this cartridge fits my valve?

The DC70-T20 is designed for valves using a 70mm diameter, 117mm length and 20-spline cartridge. Check your existing cartridge or valve model against these measurements before ordering. If your valve uses a smaller 50mm cartridge, see the SC50T20 replacement cartridge instead.

What does fully reversible mean?

The cartridge is designed to operate correctly even when the hot and cold supplies are connected in reverse. This is a common installation issue and the cartridge can be rotated 180 degrees to suit the pipework.

Does this work on low-pressure systems?

Yes. The DC70-T20 is rated from 0.1 bar dynamic pressure and is also suitable for high-pressure systems up to 10 bar static pressure.

Can I fit this cartridge myself?

Replacement is a straightforward job for a competent DIYer. Isolate the water supply, remove the valve handle and retaining nut, replace the cartridge and refit the components. If you are unsure, use a qualified plumber.

Can I order if the item shows as out of stock?

Yes. If stock shows as zero, the cartridge can still be ordered specially. It will typically be dispatched within 4 working days, subject to supplier availability.

I'm not sure which cartridge I need. Can you help?

Of course. Contact customerservice@bubblegumbathrooms.co.uk or call 01603 381095 with your valve model or existing cartridge part number, and we can help confirm compatibility before you order.

Delivery Information

This is a small, postable item covered by a one-off small item delivery charge. You can combine it with other small items in a single order and pay just one delivery charge. Browse all items covered by the small delivery charge.
